10/30/2011 2:31 pm  #1


Back in the game ...

on September 12, 2010, 6:21 am, Joe wrote:

I thought I had more pictures of the LCA process but here are the ones I could find.

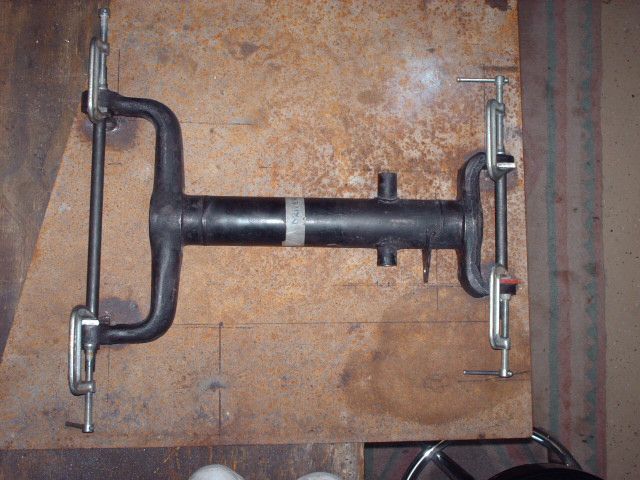

Here is the fixture that I built. I used the jag LCA and then welded tabs to the steel plate.

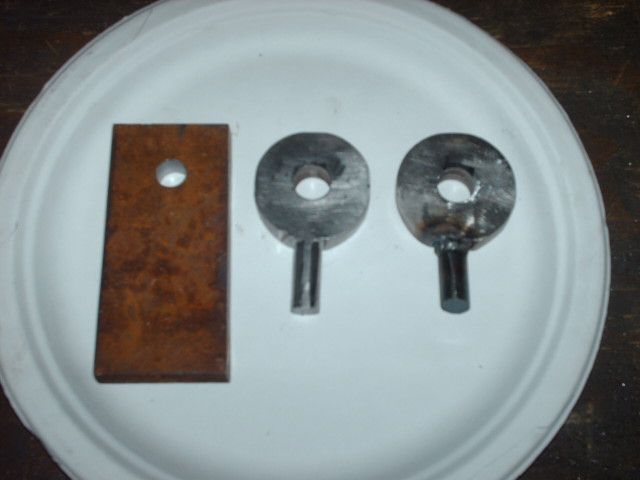

These are the ears that bolts on to the hub

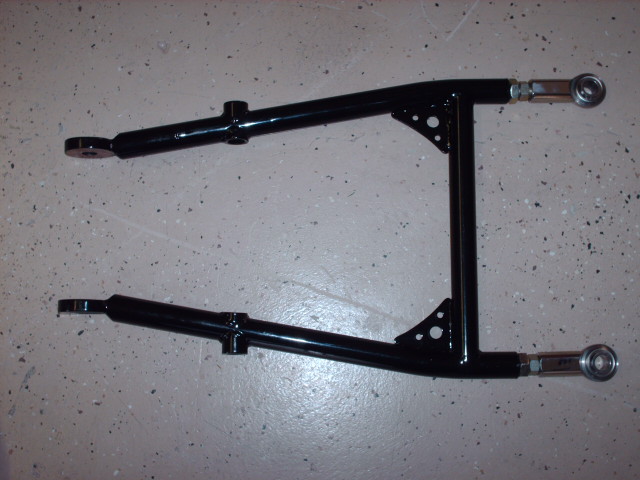

The final product ... total cost was about $200
Everything was Tig welded by my son, he did some really nice work. The heim joints can be adjusted on the car and I can adjust camber and toe.


If it isn't broken..... modify it anyway!!!!


10/30/2011 2:33 pm  #2


Re: Back in the game ...

on September 12, 2010, 5:45 pm, Daze wrote:

Thanks for the info on the control arms. Those look fantastic, I may have to make some of those my self... will see.

on September 13, 2010, 7:52 am, Daze wrote:

Thought of a question, how come you only put... heim joints on one end instead of both???

Last edited by Daze (10/30/2011 2:34 pm)


If it isn't broken..... modify it anyway!!!!
     Thread Starter


10/30/2011 2:35 pm  #3


Re: Back in the game ...

on September 13, 2010, 5:39 pm, Joe wrote:

  Honestly ... just never thought of it. It is an interesting idea though.


If it isn't broken..... modify it anyway!!!!
